Importing Maps From Another Binary

If you have a binary file from another, but similar, hardware, you might want to import calibrations from there. BitEdit allows that, given you own both modules, and the maps

Getting started​

Open BitEdit and load the destination project you want to import the calibrations into, and press the "Import" button on the Main Ribbon:

alt

Select the SOURCE binary file in the standard file selection dialog box. After loading the file and running the map detection, BitEdit will show you the list of compatible maps

Choosing relevant maps​

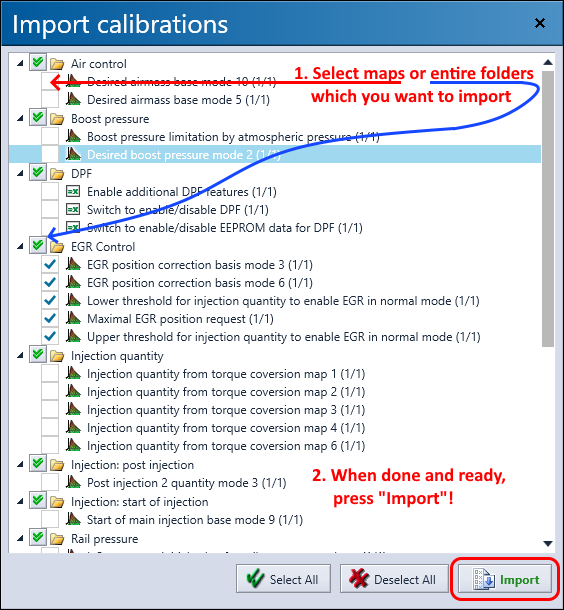

You might not want to import everything from the source, so BitEdit will ask you to specify which maps do you want to import:

alt

Reviewing Results​

After the import is completed, BitEdit will automatically create a version that would include all the changes made, on top of the current state (including previous changes):

alt
